Pool Wood Ubbink Linea 500x800 H140cm Liner Grey

Piscine Bois Ubbink Linéa 500x800 H140cm Liner Gris View larger

Reduced price!

9 974,05 € tax incl.

-5%

10 499,00 € tax incl.

Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB
Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB

By buying this product you can collect up to 997 loyalty points. Your cart will total 997 points that can be converted into a voucher of 199,40 €.


Pool Wood Ubbink Linea 500x800 H140cm Liner Grey.
Wooden pool Linéa Ubbink 800 X 500. Delivered as a complete kit including structure, filtration and accessories.

More details

Online only

UB-7504773

New product

More info

Pool Wood Ubbink Linea 500x800 H140cm Liner Grey.
Wooden pool Linéa Ubbink 800 X 500. Delivered as a complete kit including structure, filtration and accessories.

Ubbink, manufacturer of swimming pools since 1970
By choosing a product from the Ubbink brand, you invest sustainably in a space of well-being, conviviality and happiness for your garden. All above-ground wooden pools are designed with robust and quality materials, designed to meet the needs of young and old, able to withstand time, bad weather and the great moments of life.

Particularly keen to support pool owners at every stage, Ubbink offers a range of ancillary services including assembly assistance, comprehensive warranties and a responsive and efficient after-sales service.

Privileged partner of the brand, we ensure a sustainable availability of products, accessories and spare parts; a constant maintenance of delivery times even in the heart of summer as well as a perfect knowledge of the products and their specificities to advise you at best. This ensures that you speak with a qualified and competent professional.

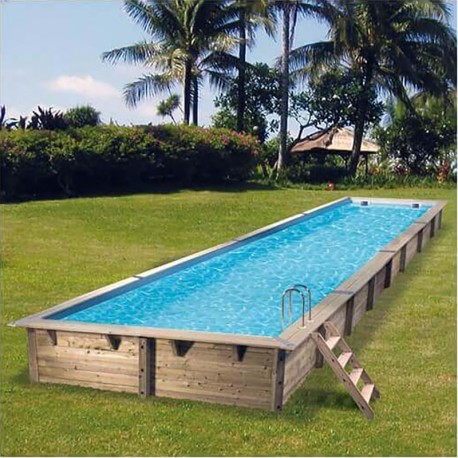

Presentation of the pool Ubbink Linea 800 x 500 cm
The Linéa range offers models with a large swimming area to allow the whole family to dive, swim or splash around without constraints. Easy to install with perfect dimensions to take full advantage of it. Available in different sizes and heights, the Linéa range offers two swimming pools that will delight swimmers and athletes. You will undoubtedly find the model best suited to your needs and those of the whole family in the Linéa range.

The Linéa 800 x 500 model is one of the flagship models of this range with a swimming area of 33.8 m². Delivered as a complete kit including structure, liner and filtration, it is ready to be installed. With a height of 140 cm, the LInéa 800 x 500 cm wooden pool is perfect for young and old to swim without risk under the supervision of an adult.

Characteristics:
Size
External dimensions: 800 x 500 cm
External dimensions in inches: 314.96" x 196.85"
Interior dimensions: 750 x 450 cm
Interior dimensions in inches: 295.27" x 177.16"
Floor area required: 900 x 600 cm
Regarding the dimensions of the concrete slab, please refer to the instructions
Height: 140 cm
Height in inches: 55.11"
Useful water height: 130 cm
Water volume: 43.9 m3
Swimming area : 33.8 m²
Unit weight: 300 kg
Equipment and materials
Pine structure from northern European forests (FSC)
Treated wood with class IV autoclave treatment
Plank thickness: 45 mm
Double northern fir margin, ep. 27 mm
Outdoor wooden ladder 4 steps (removable)
Flexible hose: 50mm, 25m
Stainless steel screws
Liner 75/100 th
Anti-bacterial background felt 200g/m²
Wall felt 170g/m²
2 skimmers & 2 discharge nozzles
Interior ladder Stainless steel 3 steps
Rigid hose: 50mm, 8m
Technical data
Filter diameter: Ø 600 mm (24")
Filter flow rate: max. 17 m3/h
System pressure: max. 3.5 bar
Filtration fineness: 28μm
Silicafiltizing sand filter supplied - 0.40 – 1.25 mm
Poolmax TP75 filtration pump
Rated voltage/frequency: 230 VAC / 50 HZ
Rated power: 1.20 HP / 0.90 kW
Filtration unit flow rate 13.0 m3/h
Plug with short circuit protection (DDR) 10 mA, IP54
Guarantees
Wood frame warranty: 15 years against rot and insect attacks.
2-year warranties: Filtration, Liner and accessories.
Products complying with FR and EN standards.

Installation recommendations:
It is essential to define the location of your pool taking into account the exposure and the quality of the soil. You will have to be careful not to install the pool on unstabilized or recently backfilled ground. The manufacturer also advises you to make a concrete slab having previously upgraded the land.
In case of sloping terrain, it is imperative to unload it to level it. Do not backfill your land to level it.

CAUTION: Place a high-density polyethylene growth sheet (not supplied) on the outer wall to drain rainwater. The height of the film must correspond to the level of the embankment. Without the presence of a draining tablecloth, the 15-year warranty covering the wooden structure may not be maintained by the manufacturer.

Assembly assistance and technical questions:
For any additional information or assistance during assembly, a support service is available from Monday to Saturday, from 9am to 6pm. The number will be communicated to you upon receipt of the order.
To ensure a simple and serene delivery, the carrier service will contact you to arrange an appointment according to your availability. On the day of delivery, the delivery person presents himself with a truck to deposit the pool as close as possible to his place of installation.
If your home is difficult to access, do not hesitate to check in with our advisors to find the best delivery option. The seller can not be held responsible in case of inaccessibility of the home.

The delivery rate indicated is valid only for metropolitan France (excluding Corsica and islands).
We deliver on request all destinations in Europe and Switzerland (delivery rate on request depending on your geographical area).

Brand: Ubbink
With the Ubbink brand, you invest sustainably in a wellness area, friendliness and happiness for your garden. All above-ground wooden pools are designed with robust and quality materials, designed to meet the needs of young and old, able to withstand time, bad weather and the great moments of life.

Particularly keen to support pool owners at every stage, Ubbink offers a range of ancillary services including assembly assistance, comprehensive warranties and a responsive and efficient after-sales service.


Specialist in Design and High Quality Brands for individuals and professionals. We present the creations and trendy objects of the biggest brands and designers. Expert in the sale of equipment, furniture and contemporary objects for the home, garden, swimming pool, heating and well-being.
