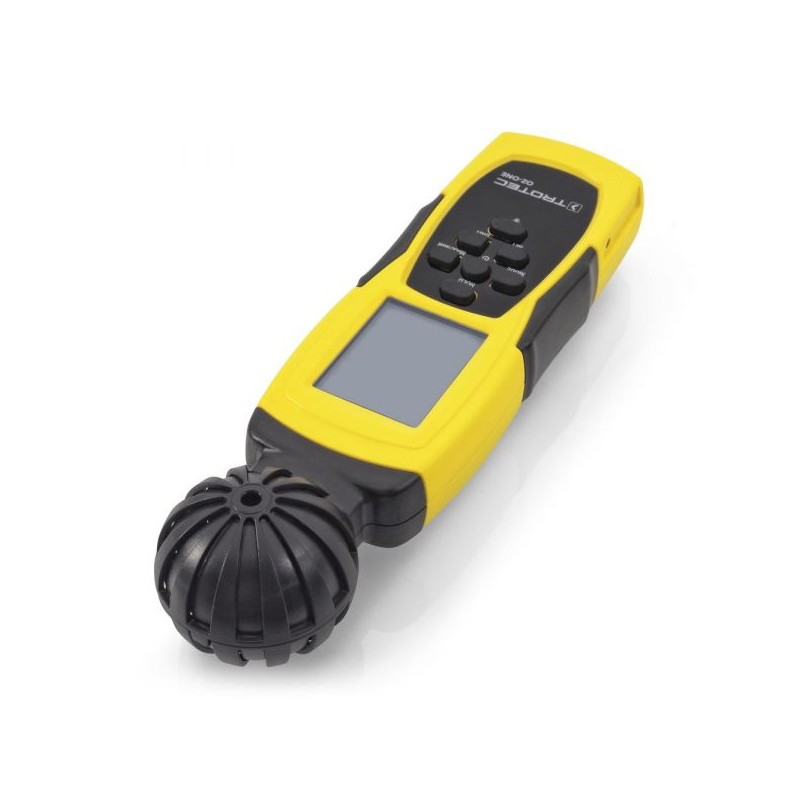

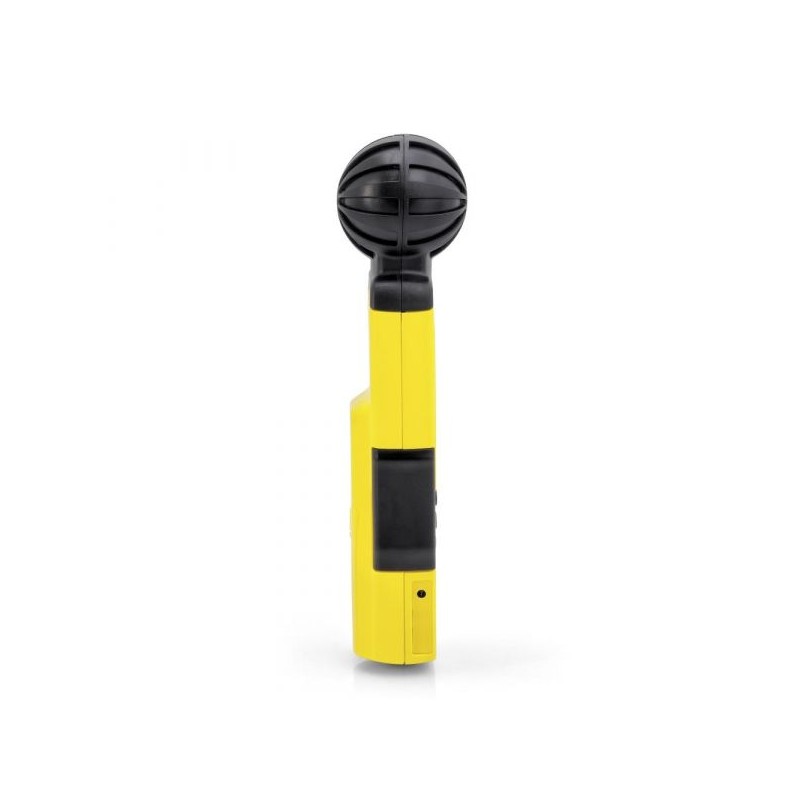

Trotec OZ-ONE ozone analyzer.
The OZ-ONE is an affordable professional ozone detector with climate measurement features such as temperature, relative humidity, dew and wet temperature.

More details

Online only

OZ-ONE-3510006110

New product

More info

Trotec OZ-ONE ozone analyzer.
The OZ-ONE is an affordable professional ozone detector with climate measurement features such as temperature, relative humidity, dew and wet temperature.

Whether it is naturally present at ground level or has been released through technical processes, ozone (O3) has harmful health effects, even in low concentrations in the air. Therefore, threshold thresholds must be observed and exposure limits are prescribed in many countries.
The OZ-ONE ozone tester will allow you to monitor the concentration of ozone in the air on an ad hoc basis, quickly and accurately, or to monitor it continuously over a period of time.
This device is characterized by very low sensitivity to other gases and VOCs as well as a short response time and precise results regardless of concentration.
The many integrated measurement functions (including the zero-measurement function of ozone, the ozone baseline for the exposure limit for short-term exposures and the time-weighted average, as well as the ability to display the results in ppm or g/m3) make the OZ-ONE tester an indispensable measuring device for accurately assessing ozone concentrations.
In addition, this pocket tester will allow you to measure ambient temperature and relative humidity as well as calculate the dew point and wet temperature. The screen has two sizes.
The OZ-ONE can be attached to a tripod to perform a series of measurements. The device is equipped with a mini-USB socket as well as a 9V jack to power the device continuously without having to use its battery. It is also possible to connect an external battery to the mini-USB socket for wireless power.

Strengths and practical details of the device:

  • Rapid and accurate detection of even minute ozone concentrations
  • Displaying the concentration of ozone in ppm or g/m3
  • Quick response time
  • Low reaction to VOCs
  • Zero ozone measurement function
  • Ozone Reference Measure (STEL/TWA [Exposure limit for short-term exposures/time-weighted average])
  • Compensation of atmospheric pressure for high-precision cube measurements
  • Measuring ambient temperature and air humidity
  • Dew point and wet temperature calculation
  • Compensation function for ambient temperature and air humidity
  • Min. function, max., screen freeze and alarm function
  • Screen lighting
  • 1/4 inch thread for tripod installation
  • Works on batteries or on sector
  • Automatic shutdown in case of inactivity
  • Certificate of calibration provided.

Examples of applications:

  • Control of occupational exposure values in industrial settings
  • Environmental technical analysis
  • Industrial process controls
  • Ozone levels after ozone disinfectant treatment, e.g. in hotels, drinking water treatment facilities and in the disaster rescue sector: fire or water damage.

Technical features:

  • Measure min./max. Ozone (O3): 0-1 ppm
  • Precision Ozone (O3): <0.1 ppm: -/-0.02 ppm or -10% of the result
  • Measure min./max. Ozone (O3): 0-1.996 g/m3 (at 20oC and 1.013 hPa)
  • Precision Ozone (O3): <200 g/m3: -/-40 g/m3 or -10% of the result
  • Measuring range min./max. Room temperature: 0-50 degrees Celsius
  • Resolution Room temperature: 0.1oC
  • ± accuracy Room temperature: 0.6 degrees Celsius
  • Measuring range min./max. Room temperature: 32-122 degrees Fahrenheit
  • Resolution Room temperature: 0.1 degrees Fahrenheit
  • ± accuracy Room temperature: 1.2 degrees Fahrenheit
  • Measuring range min./max. Relative humidity: 0 - 99%
  • Resolution Relative humidity: 0.1%
  • Precision Relative humidity:
    [±5% h.r. (0% h.r. to 10% h.r.)] ; accuracy: [5%]
    [±3% h.r. (10% h.r. to 70% h.r.)] ; accuracy: [3%]
    [±5% h.r. (70% h.r. to 99.9% h.r.)] ; accuracy: [5%]
  • Dimensions (L x l x h): 290 x 110 x 80 mm
  • Weight: 0.185 kg
  • Comes with: batteries, instructions, calibration certificate, storage case
  • Guarantee: 2 years
